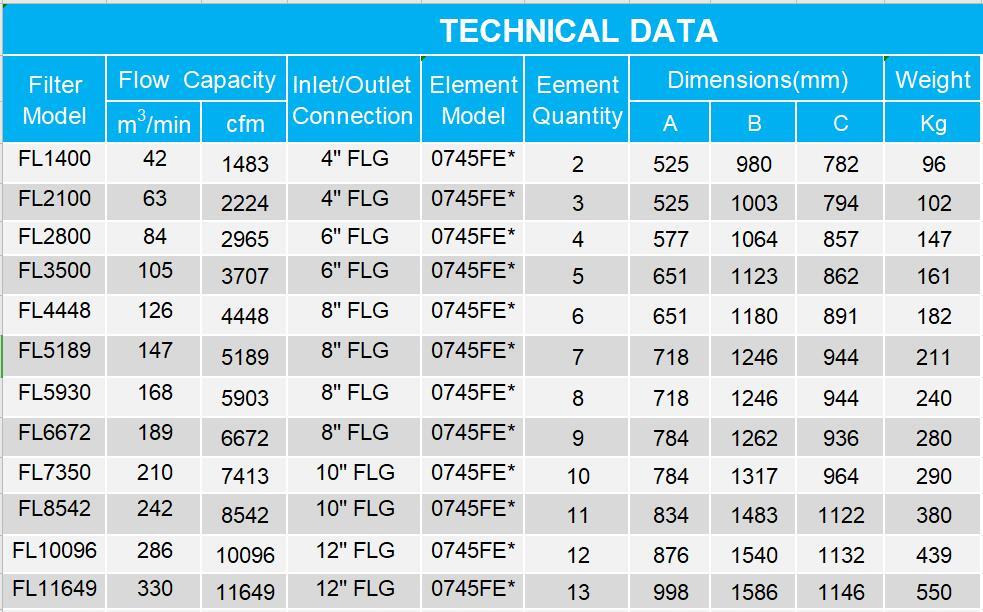

ModelFL1400
Terms of PaymentT/T
Download DOC
Update Time2020-05-28
Detail Information

Compressed air flange filter ,ANSI flange filter

The new solution in Compressed air filtration

Compressed air contains harmful solid, liquid and vaporous contaminants that can damage pneumatic equipment, control and instruments. Removal of these contaminants is necessary to sustain equipment life and continue efficient production operation. Rust, scale and decay within compressed air system piping, and ambient air that contains gaseous and corrosive substances are common factor that contribute to the damaging effect of compressed air.


 Why choose SCALA air filter ?

Pleated filter elements provides a greater filtration volume than non-pleated.

The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.

SCALA filter is equipped with differential pressure gauge which can precisely indicate the differential pressure and remind user to replace the element timely.


 Filtration Grade

Grade P - 3um Coarse filter.

Separator, filter, removal large amount of solid or liquid rust, abrasion particles.


Grade M- 1um general purpose filter

Removal of medium amounts of solid or liquid, fine contaminants, fine dust particle, small droplets and aerosols


Grade H-0.01um high efficiency fine filter

Removal of small amounts of solid or liquid,fine contaminants,fine dust particle,oil mist and aerosol


Grade C  active carbon filter

Removal of small amounts of gaseous, contaminants in particular oil vapor.


SCALA’s high efficiency filter has the following advantages:

1. Pleated filter elements provides a greater filtration volume than non-pleated.

The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.


2. Adopted with stainless steel diamond mesh which has larger filtration area and less pressure resistance compared to circular hole mesh.


3. Adopted with heat and corrosion resistant polyester wadding instead of traditional form. Form tears under high operational temperature causing the broken pieces to be carried over down stream.


4. No Pull rod design, saving installation space and very easy to change the element.


6.Elbow piping from air inlet to element which has smaller pressure drop compared to right angle piping. Antioxidative and painting treatment on housing features high corrosion resistance.


6. Float automatic drain can be opened for washing, manual testing function provides easy checking . It has high reliability and durable lifetime.
