1.8cfm Mini adsorption compressed air dryer for CNC machine

1.8cfm Mini adsorption compressed air dryer for CNC machine

1.8cfm Mini adsorption compressed air dryer for CNC machine
1.8cfm Mini adsorption compressed air dryer for CNC machine1.8cfm Mini adsorption compressed air dryer for CNC machine1.8cfm Mini adsorption compressed air dryer for CNC machine1.8cfm Mini adsorption compressed air dryer for CNC machine1.8cfm Mini adsorption compressed air dryer for CNC machine
CategoriesDesiccant Adsorption Dryer
BrandScala Compressed Air Treatment Manufacturer
ModelS-DRY003S
Normal flow rate1.8cfm (3m3/h)
Operating pressure4-16bar
Pressure dew point-40 deg c
Inlet/outlet connection1/2''
Voltages230V, 50/60Hz
Power Consumption30W
Weight12kg
Unit PriceUS $ 475.00 / piece
FOB portShanghai
Terms of PaymentT/T
Download DOC
Update Time2021-09-19
Detail Information
1.8cfm Mini adsorption compressed air dryer for CNC machine

Model  :   S-DRY012S
Flow rate : 1.8CFM(3m3/h)
Max .pressure : 16bar


DESCRIPTION

S-DRYs003-220 heatless desiccant compressed air dryers are designed for continuous separation of water vapour from compressed air thus reducing dew point. Operation of dryer requires two columns operated alternately.


Adsorption takes place under pressure in first column while second column regenerates with    a portion of already dried compressed air at ambient pressure.

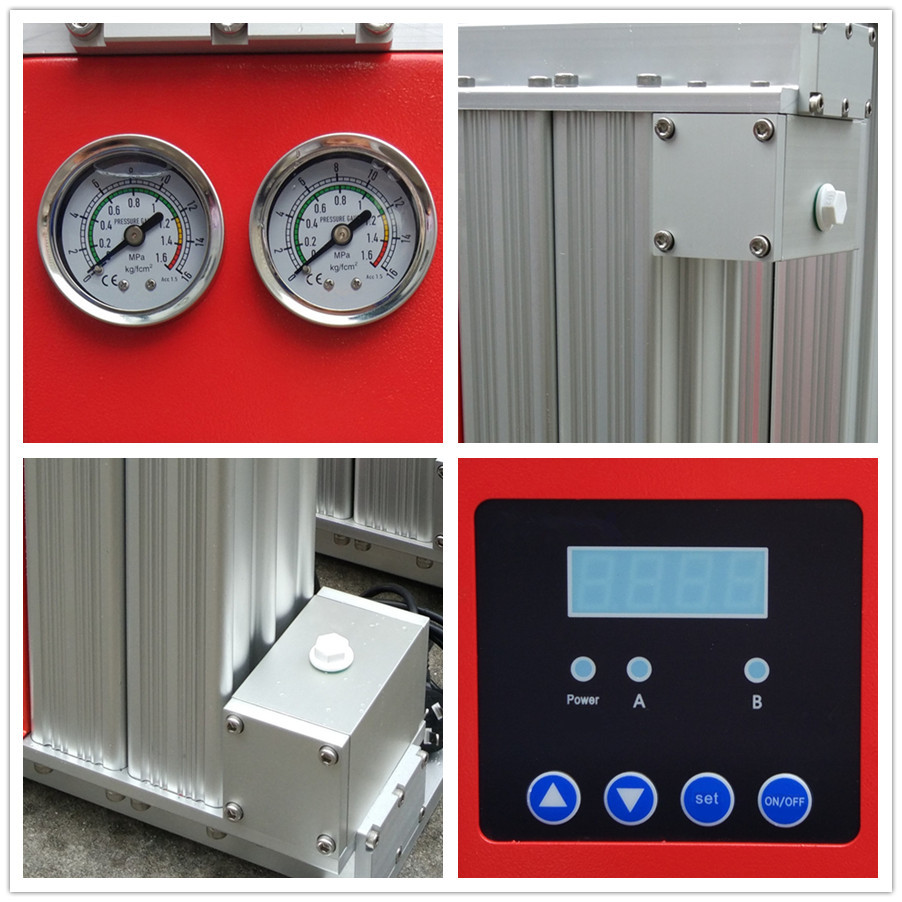

A dryer consists of two columns, filled with desiccant beads, controller with LCD dicplay, valves, manometers, support construction and suitable filter housings with the required filter element. Proven robust design enables efficient and reliable operation, fast installation and simple maintenance.





ADVANTAGES

√   Energy efficiency thanks to low purge loss


√   Compact & robust aluminum-alloy structure


√   Durable shuttle valve to ensure million times of  switches


  Stable pressure dew point with optional multiple filtration to ensure air quality


√   Low dust adsorbent with longer service period  and  less filling quantity


√   Buffer chambers in upper and lower end to reduce pressure drop


√  High performance coalescing pre-filter and particle after filter as standard



TECHNICAL DATA
 Connection Nominal volume flowDimensionsWeight
TypeIN/OUT[Nm3/h][CFM]W [mm]D[mm]H [mm]kg
S-DRY 003SG 1/2''31.87012549012
S-DRY 006SG 1/2''63.57012586013
S-DRY 012SG 1/2''127.170125105016
S-DRY 021S G 1/2''21.612.712529067519
S-DRY037SG 1/2''37.221.912529077521
S-DRY 060SG  1/2''6035.312529087523
S-DRY 079SG 1/2''79.246.6125290117528
S-DRY 108SG 1''10863.5125380117538
S-DRY 147SG 1''14786.5125505117554
S-DRY 220SG 1''220129.9125645117572

Refers to 1bar(a) and 20°C at 7 bar operating pressure, inlet temperature 35°C and pressure dew point at outlet -40°C.

CORRECTION FACTORS - F1
Operating pressure [bar]2345678910111213141516
Operating pressure [psi]2944587287100115130145160174189203218232
Correction factor0.380.50.630.750.8811.131.251.381.51.631.751.8822.13
CORRECTION FACTORS - F2
Inlet temperature  [°C]253035404550
Correction factor1110.970.870.8
DEW POINT FACTORS- F3
[°C]-25-40-70
CD1.110.7
