alternative filter element to SPX Hankison NGF filter
| Categories | Alternative Filter Element |
|---|---|
| Brand | Scala Compressed Air Treatment Manufacturer |
| Model | NGF series |
| Flow Rate | 1.2 to 45m3/min |
| Max. working Pressure | 16barg |
| Inlet/outlet Connection | 1/2 to 4'' |
| Efficiency | 99% |
| Drain | inner automatic drain |
| FOB port | Shanghai |
| Terms of Payment | T/T, Western Union |
| Update Time | February 9,2023 |
Detail Information

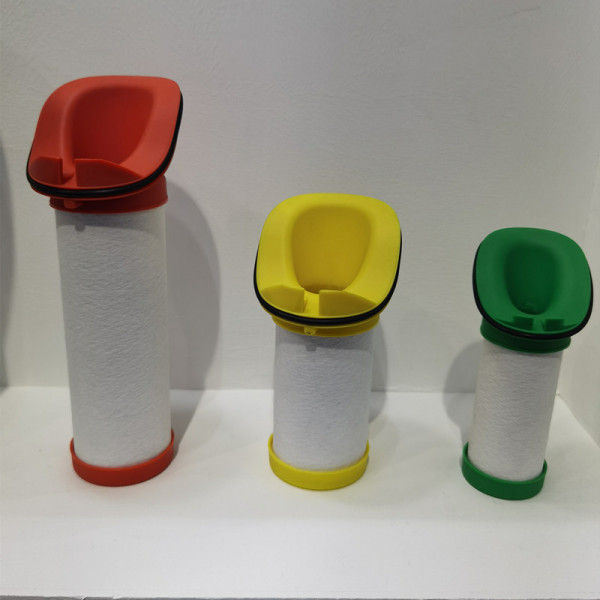

Non genuine alternative filter element to SPX Hankison NGF Series
Compressed air contains harmful solid, liquid and vaporous contaminants that can damage pneumatic equipment, control and instruments. Removal of these contaminants is necessary to sustain equipment life and continue efficient production operation. Rust, scale and decay within compressed air system piping, and ambient air that contains gaseous and corrosive substances are common factor that contribute to the damaging effect of compressed air.
Compressed air purification equipment must deliver high quality air with the lowest cost of operation.
Scala's high quality alternative filter elements are manufactured for low pressure drop and filtration performance in accordance with International Standard for compressed air quality ISO8573.1:2001
SCALA'S filter element has the following advantages
Pleated filter elements provides a greater filtration volume than non-pleated. The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.
Adopted with stainless steel diamond mesh which has larger filtration area and less pressure resistance compared to circular hole mesh.
Corrosion resistant polyester wadding instead of traditional form. Form tears under high operational temperature causing the broken pieces to be carried over down stream.
|
Filtration Grade
|
Oil Removal
|
Particulate Removal | Initial Pressure Drop | Max.Inlet Temperature |
|
Grade SF
|
N/A
|
3μm | 0.05bar | 100℃ |
|
Grade PF
|
0.1ppm
|
1μm | 0.08bar | 100℃ |
|
Grade HF
|
0.01ppm
|
0.01μm | 0.1bar | 100℃ |
|
Grade CF
|
0.003ppm
|
N/A | 0.07bar | 60℃ |
Alternative Element to Hankison NFG Series Threaded Compressed air filter
Hnakison Filter Model |
Flow rate | Filter Element Grade |
|||||
m3/h | SF | PF | HF | UF | CF | ||
F02-B-SF/PF/HF/UF/CF |
34 | SF-02 | PF-02 |
|
|
||
F03-B-SF/PF/HF/UF/CF | 59 | SF-03 | PF-03 | ||||
F04-B-SF/PF/HF/UF/CF | 85 | SF-04 | PF-04 | ||||
F06-B-SF/PF/HF/UF/CF | 127 | SF-06 | PF-06 | ||||
F07-B-SF/PF/HF/UF/CF | 175 | SF-07 | PF-07 | ||||
F08-B-SF/PF/HF/UF/CF | 267 | SF-08 | PF-08 | ||||
F10-B-SF/PF/HF/UF/CF | 437 | SF-10 | PF-10 | ||||
F11-B-SF/PF/HF/UF/CF | 612 | SF-11 | PF-11 | ||||
|
F12-B-SF/PF/HF/UF/CF
|
681 | SF-12 | PF-12 | ||||
|
F13-B-SF/PF/HF/UF/CF
|
993 | SF-13 | PF-13 | ||||
F14-B-SF/PF/HF/UF/CF | 1317 | SF-14 | PF-14 | ||||
F15-B-SF/PF/HF/UF/CF | 1750 | SF-15 | PF-15 | ||||
F16-B-SF/PF/HF/UF/CF | 2039 | SF-16 | PF-16 | ||||
F17-B-SF/PF/HF/UF/CF | 2549 | SF-17 | PF-17 | ||||
