Atlas Copco nitrogen gas generator | high purity modular PSA N2 generator
Atlas Copco nitrogen gas generator | high purity modular PSA N2 generator
| Categories | Laboratory Nitrogen Generator |
|---|---|
| Brand | Scala Compressed Air Treatment Manufacturer |
| Model | NGP10 |
| Nitrogen flow | 9.1Nm3/h |
| Nitrogen purity | 99.5%( 95% to 99.999% ) |
| Nitrogen outlet pressure | 7 barg(100psig) |
| Technology | PSA |
| Power supply | Single phase,230V-50HZ |
| Dimensions(mm) | 798(L) x 840(W) x 1300(H) |
| Weight | 244kg |
| Noise level | 65dBA@1meter |
| Unit Price | US $ 9000 / piece |
| FOB port | Shanghai |
| Terms of Payment | L/C, T/T |
| Update Time | January 29,2023 |
Detail Information
High purity nitrogen supply up to 99.999%

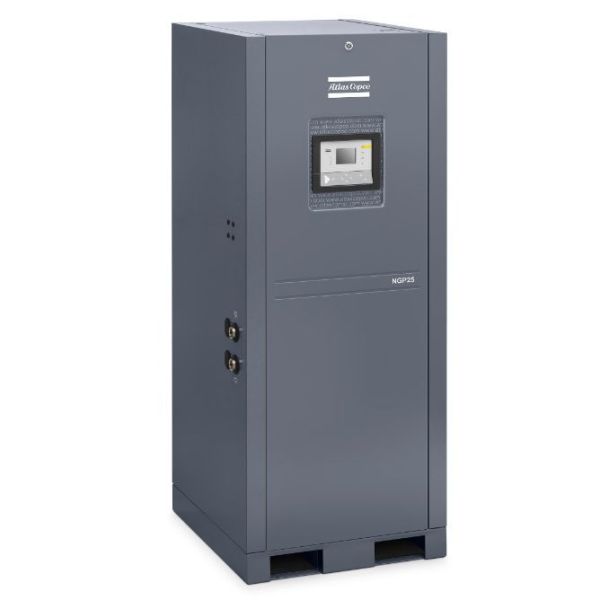

Atlas Copco’s NGP/NGP+ nitrogen generators use Pressure Swing Adsorption technology to isolate nitrogen molecules from other molecules in compressed air. Oxygen, CO2, water vapor and other gases are adsorbed. The result is virtually pure nitrogen at the outlet of the generator. The NGP/NGP+ Series is a very cost-efficient source of nitrogen used in various industries like food and beverage, metal processing, electronics, and many others.
Features
High flow capacity
The wide product range and gas flows exceeding 3,000 Nm³/h
(NGP/NGP+) make these generators ideal for a variety of demanding
applications.
Ready to use
• Only requires a supply of dry compressed air.
• Plug-and-play.
• No specialist installation or commissioning.
• Fully automated and monitored including oxygen sensor as standard.
• Service-friendly.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.
Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
Cost savings
• Low operating expenses.
• No additional costs such as order processing,
refills and delivery charges.
• Limited maintenance costs.
Technical Data
|
Model
|
NG6-1 |
|||
|
Nitrogen outlet flow
|
25 Nl/min |
|||
|
Nitrogen purity
|
99.5% ( 0.5% oxygen content ) |
|||
|
Nitrogen outlet pressure
|
7 barg (100 psig) |
|||
With air compressor | Yes | |||
Lifetime of air compressor | 5 years or 20,000 hours | |||
Power | 1500W | |||
Power supply | 230V,50Hz | |||
Dimension | 600 x 600 x 1300mm | |||
Weight | 150 Kg | |||
Noise level | 55dBA,at 1 meter | |||
