LC/MS nitrogen gas generator | with internal air compressor
LC/MS nitrogen gas generator | with internal air compressor
| Categories | Laboratory Nitrogen Generator |
|---|---|
| Brand | Scala Compressed Air Treatment Manufacturer |
| Model | NG35-1 |
| Nitrogen flow | 35L/min |
| Nitrogen purity | 99%( 1% oxygen content) |
| Nitrogen outlet pressure | 7 barg(100psig) |
| Technology | PSA |
| Power | 1500W |
| Power supply | Single phase,230V-50HZ |
| Dimensions(mm) | 600(L) x 600(W) x 1300(H) |
| Weight | 150kg |
| Noise level | 55dBA@1meter |
| Unit Price | US $ 9800 / piece |
| FOB port | Shanghai |
| Terms of Payment | L/C, T/T |
| Update Time | May 30,2023 |
Detail Information

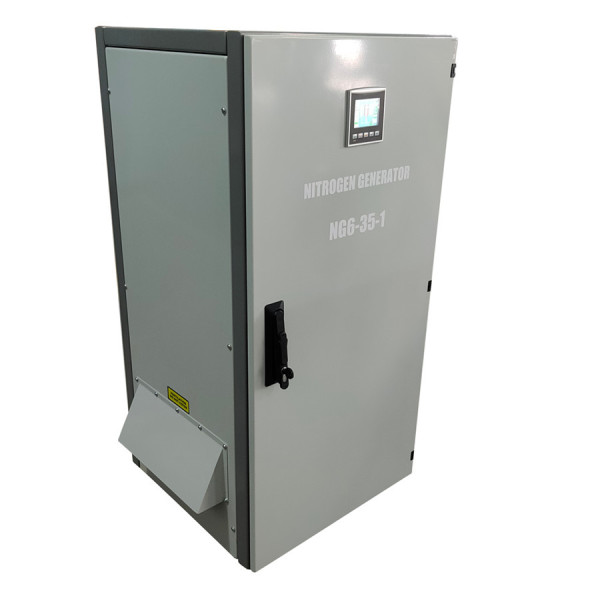

NG35-1 Intelligent Nitrogen Gas Generators for LC/MS
NG35-1 is the latest LC/MS Laboratory Nitrogen Gas Generators from Scala Filtration. Utilising the reliable and efficient PSA technique of separating Nitrogen and Oxygen is used to produce high quality Nitrogen Gas at various flows and purities (see performance data sheets).

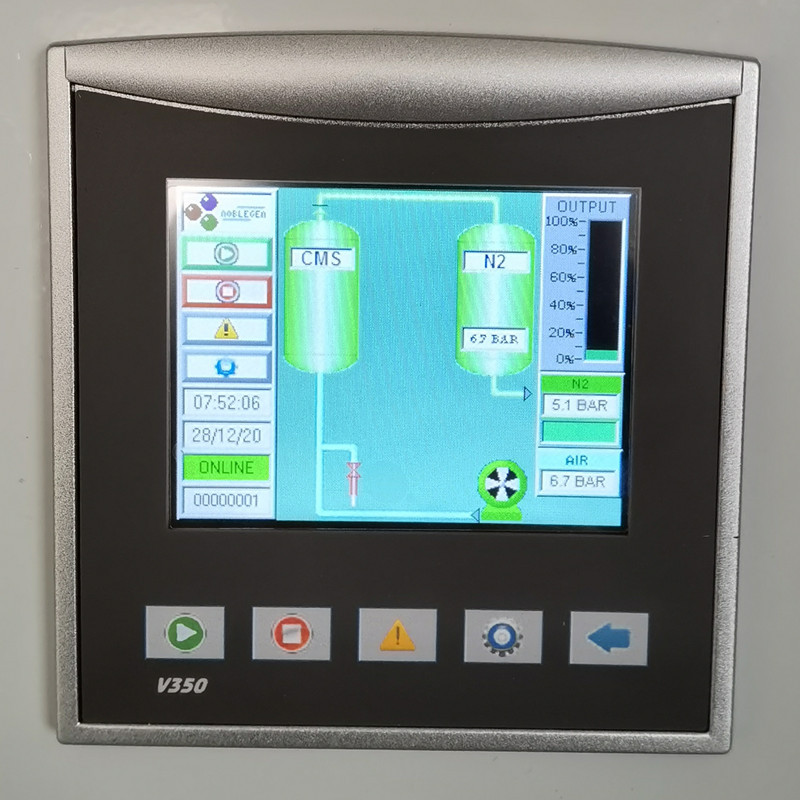

The LC/MS Nitrogen Generators are controlled using the latest in HMI touch screen technology to display the process in real-time, inlet / outlet pressures, Trend graphs and much more......
Features
With Internal oil-free air compressor
Compact and Quiet design
Purity 99%
Auto-run facility
Energy saving mode
Outlet flow indicator (% flow)
Trend graphs into MS excel
Alarms with help menu
Audible alarm sounder
Remote access via internet
Applications
Pharmaceutical & Laboratory:
General laboratory
LC/MS
TurobVap
NG35-1 LC/MS Nitrogen Generator from Scala Filtration is your reliable and efficient alternative to conventional high pressure cylinder and liquid gas supplies. Taking away the on-going costs, safety considerations and transportation of traditional gas supplies, the “NG35-1" on-site Nitrogen systems are some of the most advanced and intelligent available.
The control system gives the user all the information necessary to ensure an efficient and consistent supply of gas is always available. From the process to flow and alarms, including auto-start / stop function, Trend graphs, service alarm and service records page, there is simply no other laboratory nitrogen system quite like NG35-1. The NG35-1 is one of the most economical range of nitrogen generators on the market for both purchase price and on-going running / maintenance costs. Together with our unrivalled experience and knowledge
Technical Data
|
Model
|
NG35-1 |
|||
|
Nitrogen outlet flow
|
35 Nl/min |
|||
|
Nitrogen purity
|
99% ( 1% oxygen content ) |
|||
|
Nitrogen outlet pressure
|
7 barg (100 psig) |
|||
With air compressor | Yes | |||
Lifetime of air compressor | 5 years or 20,000 hours | |||
Power | 1500W | |||
Power supply | 230V,50Hz | |||
Dimension | 600 x 600 x 1300mm | |||
Weight | 150 Kg | |||
Noise level | 55dBA,at 1 meter | |||
