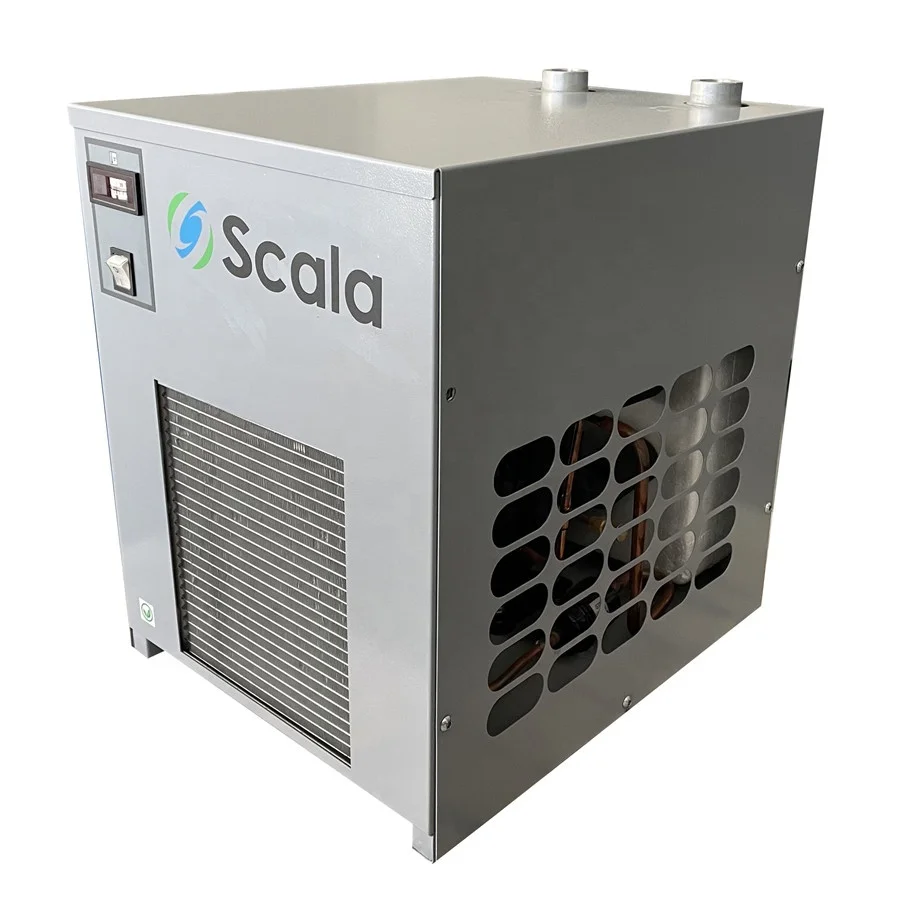

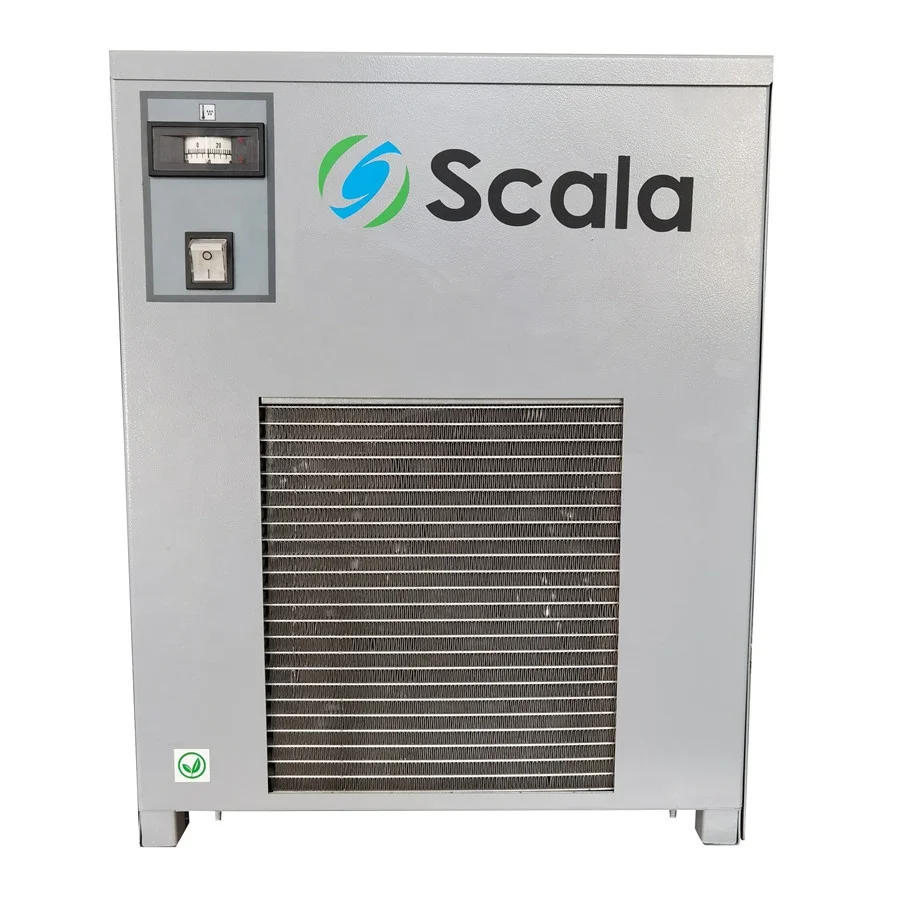

Aluminum plate refrigerated compressed air dryer for small air compressor

Categories

Aluminum plate refrigerated compressed air dryer for small air compressor

Aluminum plate refrigerated compressed air dryer for small air compressor
Aluminum plate refrigerated compressed air dryer for small air compressorAluminum plate refrigerated compressed air dryer for small air compressorAluminum plate refrigerated compressed air dryer for small air compressorAluminum plate refrigerated compressed air dryer for small air compressor
CategoriesAir-cooled Refrigerated Dryer
BrandScala Compressed Air Treatment Manufacturer
ModelD10
Inlet capacity1.0 m3/min （35cfm）
Max operating pressure13bar（optional 16bar）
Inlet/outlet connectionG3/4''
Voltagessingle phase,230V/50HZ
refrigerant gasR134a
Dimension352x430x445mm
Weight30kg
Unit PriceUS $ 370 / piece
FOB portShanghai
Terms of PaymentT/T
Update TimeSeptember 28,2023
Contact Now
Favorites
Detail Information
Product Overview
D Series Aluminum Plate Refrigerated Air Dryer
D Series refrigeration compressed air dryers utilize the principle   of  refrigeration to cool compressed air and discharge condensate water to dry compressed air. The pressure dew point can be as low as +5℃.

A high efficient aluminum plate heat exchanger that integrated with pre-cooler,evaporator and separator to remove water from compressed air. Industrial grade refrigerant compressor with less power consumption.
Intelligent controller with dew point indication and alarm function.

FEATURES AT A GLANCE
Stable pressure dew point
High reliability
Compact structure
Intelligent controller
Low pressure drop
Low power consumption
Easy maintenance
Eco-friendly refrigerant
Right elevation
Left elevation
Front elevation
00:00
00:32
COMPETITIVE ADVANTAGES

High Reliability- Industrial grade refrigerant compressor. Advanced pipeline design with fewer components and soldering points to reduce the risk of refrigerant leakage.

High Efficiency- All-in-one aluminum plate heat exchanger with low inlet/ outlet temperature difference.Electrical timed drain to ensure discharge of condensate drain.

Eco-friendly- R134a and R410A refrigerant with cold energy recovery.

Intelligent control -With dew point display and fault alarm function.

PRODUCT CONFIGURATION
Industrial grade refrigerant compressor from Danfoss with R134A refrigerant
3-in-1 Aluminum plate heat exchanger with low inlet/outlet
temperature difference
Aluminum fin type condenser with quality fan motor
Simple structure with fewer welding points to reduce refrigerant leakage
Simple on/off switch with dew point indicator or digital controller on larger models
high efficient aluminum plate type condenser

TECHNICAL DATA
Model
Inlet Capacitym3/min
Power    Kw
Refrigerant
Inlet/Outlet Connection
Dimensions   LxWxH mm
Weight
Kg
D10
1.0
0.217
R134a
G 3/4''
352x430x445
30
D13
1.3
0.36
R134a
G 3/4''
550x370x704
33
D21
2.1
0.364
R134a
G 3/4''
550x370x704
34
D40
4
0.7
R410a
G 1''
520x500x809
55
D66
6.6
0.951
R410a
G 1.1/2''
520x500x809
60
D85
8.5
0.988
R410a
G 1.1/2''
550x600x958
68
D105
10.5
1
R410a
G 2''
550x600x958
75
D140
14
1.674
R410a
G 2''
900x750x1009
110
D175
17.5
1.75
R410a
G 2''
900x750x1009
126
D220
22
2.85
R410a
G 2.1/2''
1050x660x1130
140
D260
26
2.95
R410a
G 2.1/2''
1050x660x1130
162
Note: power supply: 230v-1ph-50hz,
Standard working pressure: 7 barg；Allowed working pressure: 4.- 13 barg (Optional 16barg)
Standard inlet temperature：40℃；Allowable inlet temperature：1- 55℃
Standard ambient temperature: 30℃；Allowed ambient temperature: 1-45℃

Correction Factor
Inlet Temperature Correction
Inlet Temperature  ℃
30
35
40
45
50
55
Correction Factor
1
1
1
0.82
0.69
0.58
Inlet Pressure Correction
Inlet Pressure (barg)
5
6
7
8
10
13
Correction Factor
0.9
0.96
1
1.03
1.08
1.13
Ambient Temperature Correction
Ambient Temperature (℃)
30
35
40
45
Correction Factor
1
0.91
0.81
0.72
