G Series high efficiency Flange type compressed air filter for air dryer
G Series high efficiency Flange type compressed air filter for air dryer
Categories | Flanged Compressed Air Filter |
---|---|
Brand | SCALA |
Model | G3000* |
Flow Rate | 1280CFM( 36.3m3/min) |
Max Pressure | 16bar |
Connection | 3''NPT or BSP |
Filtration grade | P |
Particulate removal down to | 3 micro |
Oil removal down to | n/a |
Optional | inner automatic drain |
Optional Accessories | Differential pressure gauge |
FOB port | Shanghai |
Update Time | Dec 7,2024 |
Detail Information
G Series high efficiency Flange type compressed air filter for air dryer
Compressed air contains harmful solid, liquid and vaporous contaminants that can damage pneumatic equipment, control and instruments. Removal of these contaminants is necessary to sustain equipment life and continue efficient production operation. Rust, scale and decay within compressed air system piping, and ambient air that contains gaseous and corrosive substances are common factor that contribute to the damaging effect of compressed air.
Compressed air filters must deliver high quality air with the lowest cost of operation.
Very Low pressure drop means Energy Efficient
Inner automatic drain,differential pressure gauge
Inner threaded installation,easy to replace the element.
Pleated element, low pressure drop ,large filtration area.
Stainless steel and aluminum alloy hosing features high cooling effect.
Suitable for all compressed air application and all compressor type
Suitable for mineral and synthetic oil and oil free application
Silicon free ,safe for painting and surface coating applications
Electrophoresis treatment eliminating corrosion on internal and external head and bowl surfaces.

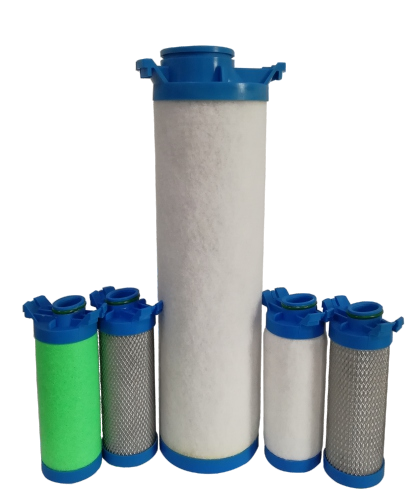

Scala elements are manufactured for lowest pressure drop and in accordance with International Standard for compressed air quality ISO 8573.1:2001

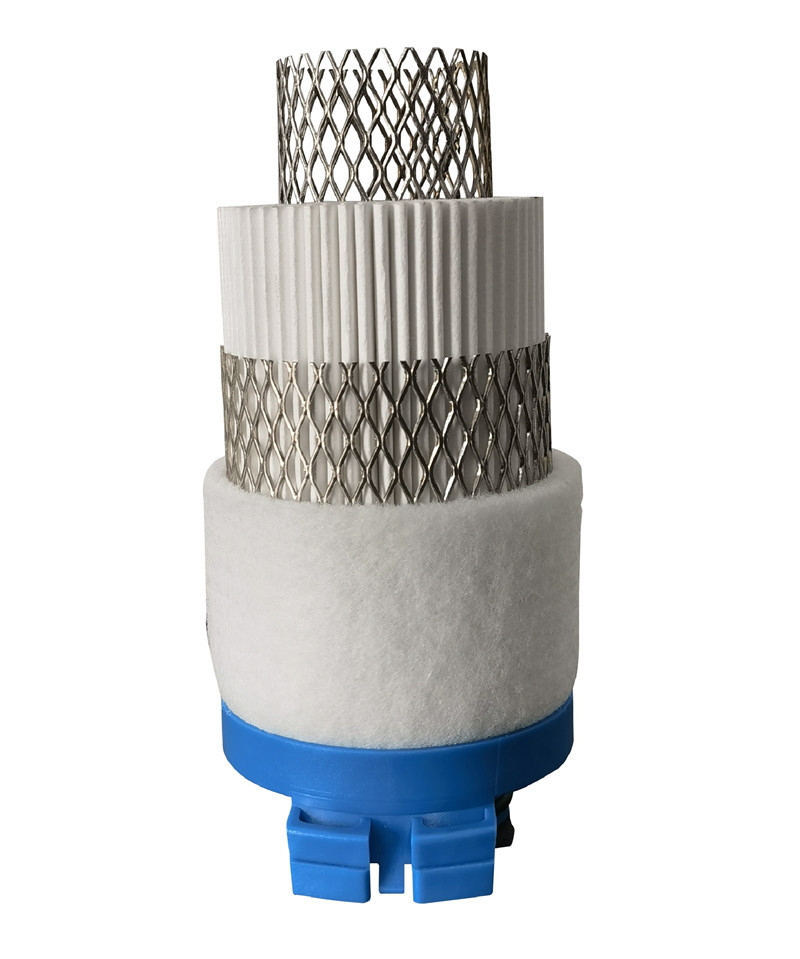

Pleated filter elements provides a greater filtration volume than non-pleated. The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.
Adopted with stainless steel diamond mesh which has larger filtration area and less pressure resistance compared to circular hole mesh.
Adopted with heat and corrosion resistant polyester wadding instead of traditional form. Form tears under high operational temperature causing the broken pieces to be carried over down stream.
No Pull rod design, saving installation space and very easy to change the element.
Elbow piping from air inlet to element which has smaller pressure drop compared to right angle piping.
Filtration Grade
|
Oil Removal
|
Particulate Removal
|
Initial Pressure Drop | Max. Inlet Temperature |
Grade P
|
N/A
|
3μm
|
0.05bar | 100℃ |
Grade M
|
0.1ppm
|
1μm
|
0.08bar | 100℃ |
Grade H
|
0.01ppm
|
0.01μm
|
0.1bar | 100℃ |
Grade C
|
0.003ppm
|
N/A
|
0.07bar | 60℃ |
Technical Specifications
Filter Model
|
Connection
|
Flow Capacity
|
Element Model | Dimensions(mm) |
Weight
|
||||
DN
|
Nm3/min
|
cfm | A | B | C | D |
Kg
|
||
GL2201*
|
DN65
|
22
|
777 | 2200E* | 310 | 707 | 645 | 570 |
16.5
|
GL2500*
|
DN65
|
25
|
883 | 2500E* | 360 | 857 | 779 | 570 |
23
|
GL2501* | DN80 | 25 | 883 | 2500E* | 360 | 857 | 779 | 630 | 23.4 |
GL3000* | DN65 | 30 | 1059 | 3000E* | 360 | 857 | 779 | 630 | 23.2 |
GL3001* | DN80 | 30 | 1059 | 3000E* | 360 | 857 | 779 | 630 | 23.6 |
GL3002* | DN100 | 30 | 1059 | 3500E* | 360 | 857 | 779 | 630 | 27.2 |
GL3500* | DN80 | 35 | 1236 | 3500E* | 360 | 1007 | 929 | 700 | 27.4 |
GL4500* | DN100 | 45 | 1589 | 4500E* | 360 | 1007 | 929 | 700 | 31.2 |
GL4900* | DN100 | 49 | 1730 | 4900E* | 360 | 1007 | 929 | 700 | 31.5 |
