0.6-46m3/min EU Standard Inline Compressed Air Filter Manufacturer

0.6-46m3/min EU Standard Inline Compressed Air Filter Manufacturer
Categoriescompressed air filter
AlbumView larger image
BrandScala
Flow Rate0.6-46m3/min
Max Pressure16bar
Connection1/2'' - 3''
Compressed Air QualityISO8573.1:2001
Filtration Grade P3um
Filtration Grade M1um
Filtration Grade H0.01um
Filtration Grade C0.003um Active Carbon Filter
Drain TypeInner Automatic Drain
AccessoriesDifferential Pressure Gauge
Unit PriceUS $ 45-120 / piece
FOB portShanghai
Terms of PaymentT/T, Western Union
Download DOC
Update Time2019-12-06
Detail Information
0.6-46m3/min EU Standard Inline Compressed Air Filter Manufacturer
The new solution in Compressed air filtration
Compressed air contains harmful solid, liquid and vaporous contaminants that can damage pneumatic equipment, control and instruments. Removal of these contaminants is necessary to sustain equipment life and continue efficient production operation. Rust, scale and decay within compressed air system piping, and ambient air that contains gaseous and corrosive substances are common factor that contribute to the damaging effect of compressed air.

Compressed air purification equipment must deliver high quality air with the lowest cost of operation.

Low pressure drop- Energy Efficient
EU made inner drain,differential pressure gauge
Inner threaded installation,easy to replace the element.
Pleated element, low pressure drop ,large filtration area.
Stainless steel and aluminum alloy hosing features high cooling effect.
Suitable for all compressed air application and all compressor type
Suitable for mineral and synthetic oil and oil free application
Silicon free ,safe for painting and surface coating applications
Electrophoresis treatment eliminating corrosion on internal and external head and bowl surfaces.


Fast combined connection suitable for laboratory and terminal air.
Several filters can be connected together without additional thread .

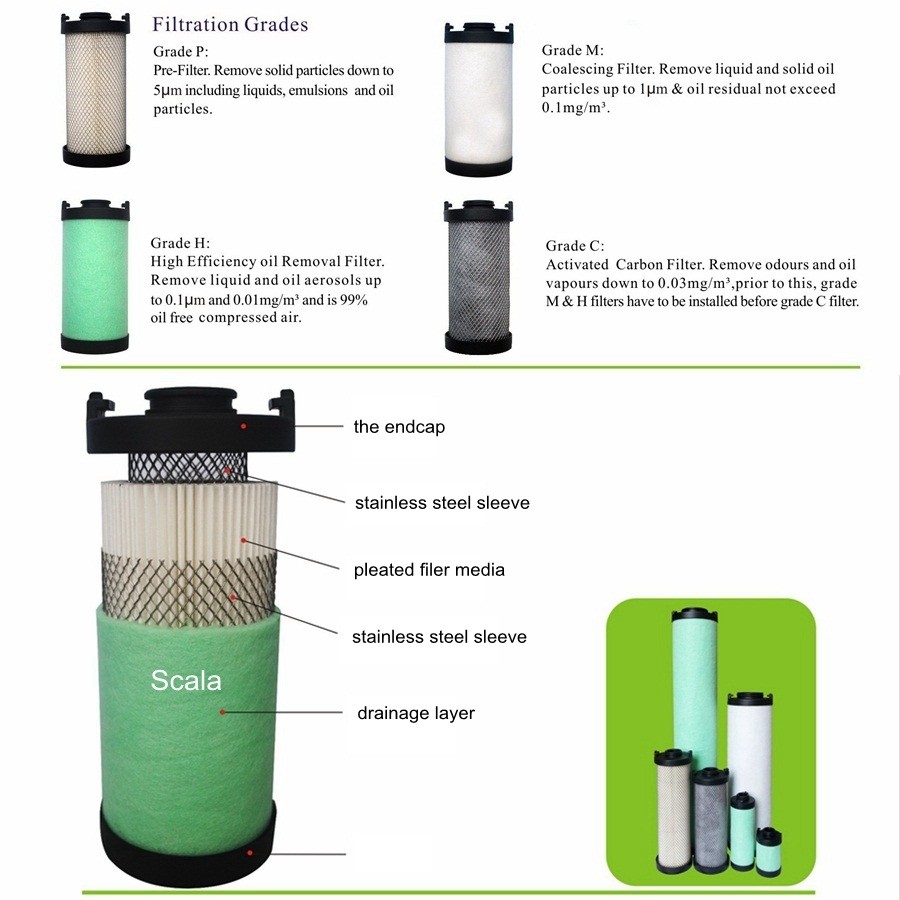

Scala elements are manufactured for lowest pressure drop and in accordance with International Standard for compressed air quality ISO8573.1:2001

Grade P - 3um Coarse filter.
Separator, filter, removal large amount of solid or liquid rust, abrasion particles.
Grade M- 1um general purpose filter
Removal of medium amounts of solid or liquid, fine contaminants, fine dust particle, small droplets and aerosols
Grade H-0.01um high efficiency fine filter
Removal of small amounts of solid or liquid,fine contaminants,fine dust particle,oil mist and aerosol
Grade C  active carbon filter
Removal of small amounts of gaseous, contaminants in particular oil vapor.



Why choose SCALA Air Filter ?
SCALA filter is equipped with differential pressure gauge which can precisely indicate the differential pressure and remind user to replace the element timely.


Best EU made automatic drain with manual testing function. It has high reliability and durable lifetime. If the condensate water is  not discharged timely, the oil and water may be brought into the downstream pipeline to cause contamination.

SCALA's high efficiency filter element has the following advantages:
1. Deep Bed Pleating
Pleated filter elements provides a greater filtration volume than non-pleated.
The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.

2. Adopted with stainless steel diamond mesh which has larger filtration area and less pressure resistance compared to circular hole mesh.

3. Adopted with heat and corrosion resistant polyester wadding instead of traditional form. Form tears under high operational temperature causing the broken pieces to be carried over down stream.

4. No Pull rod design, saving installation space and very easy to change the element

Elbow piping from air inlet to element which has smaller pressure drop compared to right angle piping. Antioxidative and painting treatment on housing features high corrosion resistance.

Air leakage can cause energy loss,many micro leakages are not easily found, SCALA filters are 100% leakage tested.



TECHNICAL DATA SHEET
Filter
Model
Port
Size
Max.
Pressure
        Flow  Rate
( 7bar,20deg c)
Dimensions (mm)Element
Model
inchbarNm /mincfmABCD
F00201/2''160.572095220197950020E
F00451/2''161.345952201971100045E
F00703/4''16270952802571450070E
F01003/4''162.8100952802571750100E
F01251''163.51251253152851550125E
F01801''165.11801253152851850180E
F02651-1/2''167.52651253973672000265E
F03701-1/2''1610.53701253973672000370E
F05152''1614.65151705204783000515E
F07452''1621.17451707006583000745E
F10602-1/2''163010602009959383001060E
F12803''1636.312802009959383001280E
F16503''1646.716502009959383001650E
